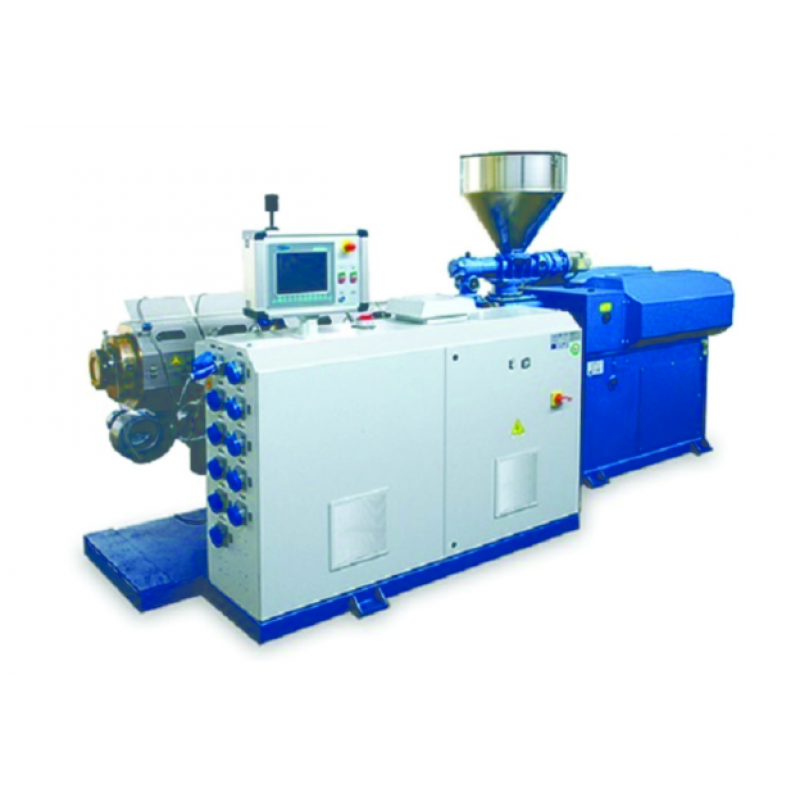

ADTECH TWIN SCREW EXTRUDERS offers a wide range of high capacity PVC extruders with screws from 20L/D up to 28L/D, for outputs up to 1000Kg/hr, depending on application and output. The twin screw extruders provided with PC based HMI controls for reliable pipe production at low reject rates. The robust design and controls give operators the opportunity to reach for higher productivity at each stage of the pipe extrusionprocess. These twin screw extruders are suitable for RPVC/UPVC, for both, single and dual die pipe manufacturing.
KEY FEATURES
- Output capabilities of up to 1000 kg/hr
- Improved screw design - Increased material throughput at lower screw speeds
- Low shear stress on material- Gentle plasticizing- Great melt quality
- Air-cooled barrel for a more gradual cooling
- Internal screw cooling
- Operator friendly controls with all necessary safety features.
- HMI based PLC controls with advance PID temperature controller
- Robust machine design for easy operation and maintenance
- Optimized output at different size of pipe OD and thickness.
- Option of Tungsten Carbide coated screw for enhanced screw life
- Lower specific energy consumption
TECHNICAL SPECIFICATIONS: TWIN SCREW EXTRUDER FOR RPVC/ UPVC
|
MODEL
|
PIPE RANGE
( MM ) |
MAXI.O/P
KG/HR |
L/D
Ratio |
Screw Dia
mm |
SCREW
SPEED
RPM |
MAIN
MOTOR
KW |
LENGTH OF
LINE
MTR |
| ADEX110T |
20-110 |
110 |
20:1 |
52 |
5-50 |
11.25 |
22 |
| ADEX170T |
20-200 |
170 |
18:1 |
65 |
5-50 |
15 |
24 |
| ADEX250T |
50-250 |
250 |
22:1 |
65 |
5-55 |
22.50 |
28 |
| DEX350T |
90-315 |
350 |
28:1 |
71 |
5-55 |
30 |
29 |
| ADEX450T |
90-400 |
450 |
22:1 |
90 |
4-40 |
45 |
30 |
| CADEX550T |
90-400 |
550 |
25:1 |
91 |
4-44 |
60 |
30 |
| ADEX700T |
90-400 |
700 |
28:1 |
91 |
4-44 |
75 |
30 |
| ADEX900T |
90-400 |
900 |
28:1 |
110 |
3-30 |
110 |
35 |
Note: These extruders can be used effectively for double stranded lines for optimum outputs
Optional
- Auxiliary extruders for Co-extrusion
- Hopper dryers
- Vacuum hopper loaders
