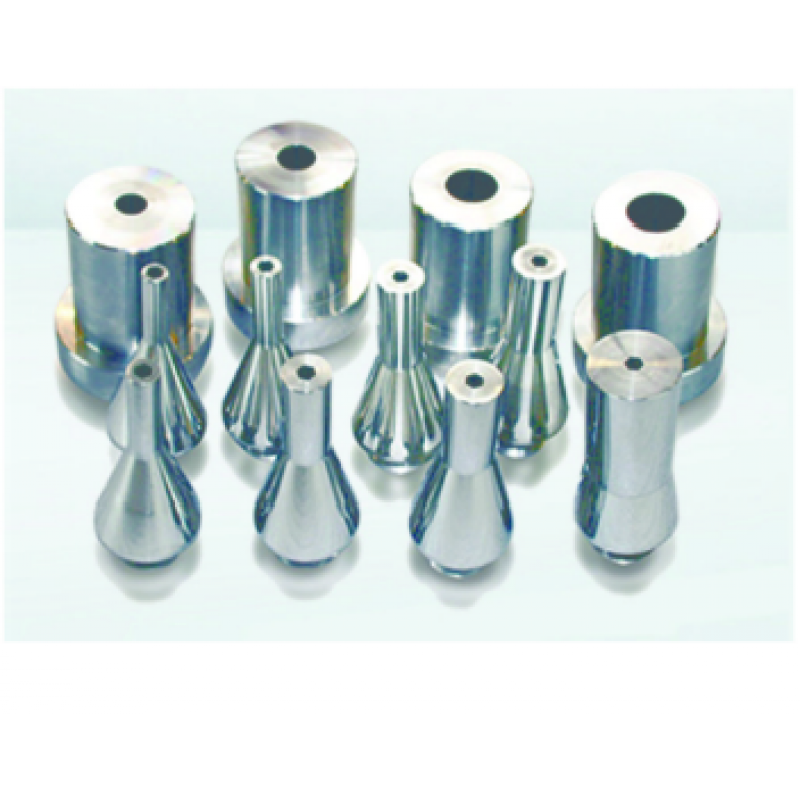

ADTECH PVC DIE HEADS

With the constant focus on our reputation, we are engaged in offering a finest range of ADTECH PVC DIE HEADS. A high grade quality material and avant-garde machinery is used in manufacturing this Adtech PVC Die Heads. Our professionals check this Adtech PVC Die Heads on different feature of quality to promise its fault free nature. In addition, this Adtech PVC Die Heads is avail from us in normal rates.

ADTECH dies are state of art of robust design, easy to assemble & dismantle and, easy to maintain for both PVC and PO (HDPE/PPR) pipes

ADTECH offers spider dies up to 630mm dia with single head and dual head. PVC DIES  heads are double compression design spider dies for reliable use in production. These die heads are with robust design, easy to assemble & dismantle and maintenance friendly. The flow lines have been optimized for reliable and reproducible production and allow high output and easy to run formulations. As the compression is high, the pipes are smooth without weak spider lines

Advantages

• A smooth pipe and low overweight at high output
• Excellent melt distribution and melt flow properties.
• Twin die heads for higher output for die up to 200mm
• Maximum Extruder capacity utilization even in smaller pipes.
• Less die head changing time
• High volume and low pressure design
• Perfect spider line welding because of double compression
• Dual die head with dual downstream for pipe size 20-110 mm and 63- 250 mm

• - ADD63C DIE HEAD with 200mm Centre distance is dual compact DIE head for pipe OD up to 63mm!

Note: For higher output above die heads can be used for dual pipes with Y-piece attachment in combination with dual downstream set up for pipe size up to 250mm OD.
