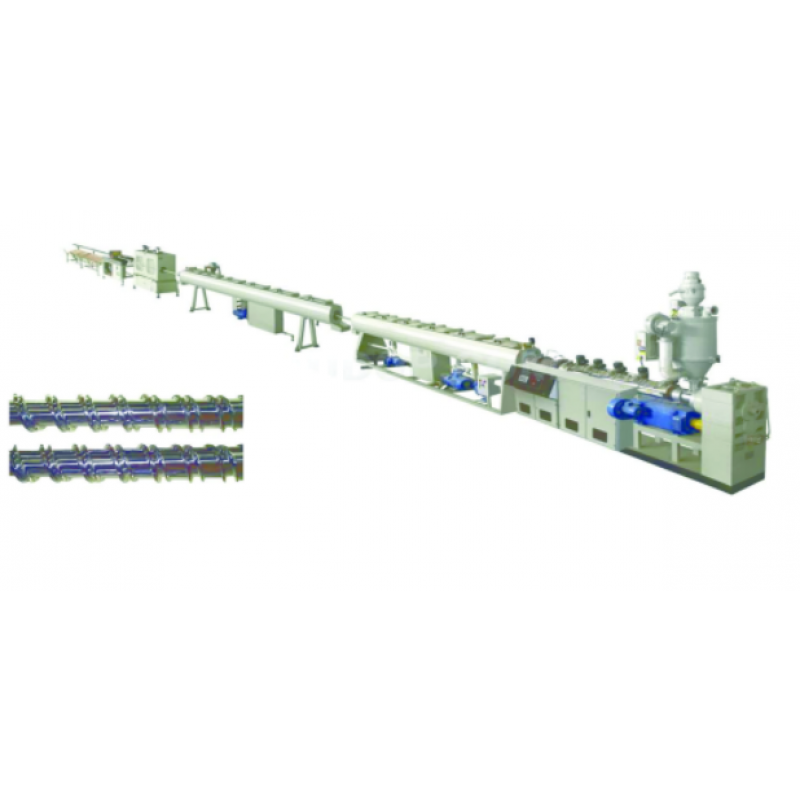

SINGLE SCREW EXTRUDER LINE FOR HDPE/PPR/PE PIPES

Details of SINGLE SCREW EXTRUDER LINE FOR HDPE/PPR/PE PIPES

ADTECH SINGLE SCREW EXTRUDERS are offered for extrusion of polyolefin (HDPE/LDPE/PLB Ducting, PP, PPR) PIPES. The extruder with screw diameters 25-120mm is available for output range 5Kg/hr to 1000Kg/hr. The next generation extruders with barrier screw and groove feed bush results into higher output rate, homogeneous plasticizing and less material slippage

KEY FEATURES

  • Barrier Screws- High homogeneous plasticizing- Less material slippage
  • Screw geometry for HDPE & PP pipe extrusion.
  • Grooved feed bush - Higher output - Reduced power consumption
  • Higher productivity due to longer L/D ratio & flexibility of wide range of processing, less material slippage & best plasticization.
  • Over all machine design is easy handling, easy maintenance and operation unit wise.
  • Most optimized output at different size of pipe OD and thickness.
  • Superior physical properties of end product
  • Extruders to process PE/PPR
  • Synchronization of high rated AC drives.



Barrier Screw

Grooved Feed System

  • Higher production output
  • Improved material conveying capacity
  • Uniform flow throughout and consistent melt temperature
  • Pressure Invariance
MODEL Screw Dia MM L/D ratio Extruder drive KW Output in Kgs/hr
ADX 65G 65 30:01:00 55 170-190
ADX 65GH 65 30:01:00 75 200-220
ADX 75G 75 30:01:00 75 220-250
ADX 90G 90 30:01:00 110 325-350
ADX 90GH 90 30:01:00 150 430-450
ADX 120S 120 30:01:00 180 500-550
ADX 120SH 120 30:01:00 315 750-800
